We have not yet talked at all about the new ribbon capabilities in the Revit 2011 API. There are quite a few, as the following excerpt from the What's New section of the Revit API help file RevitAPI.chm shows:

Additional options for Ribbon customization

There are new Ribbon components supported via the Ribbon API:

• SplitButton – a pulldown button with a default pushbutton attached
• RadioGroup – a set of ToggleButtons, where only one of the set can be active at a time
• ComboBox – a pulldown containing a set of selectable items, which can be grouped optionally
• TextBox – an input field for users to enter text
• SlideOut panel – an extra panel can optionally slide down from a Ribbon panel; this panel can contain any of the standard Ribbon components

For ComboBox and TextBox, events are included; these events call your API code when the component is changed by the user.

The new property

• RibbonItem.Visible

provides control over whether a particular item is visible.

The new properties:

• RibbonItem.LongDescription
• RibbonItem.ToolTipImage

allow you to set up an extended tooltip for the Ribbon item. This tooltip can display a longer set of text, and/or a single image.

The new property:

• PushButton.AvailabilityClassName

allows assignment of an availability class to controlled whether or not the button is available, similar to the option provided for ExternalCommands registered by manifest.

There is also a new option supported for PulldownButton – a separator can now be added between buttons this component.

There is also a new option to add custom panels to the Analyze tab in Revit as well as the Add-Ins tab, via a new overload of Application.CreateRibbonPanel().

As a result of these enhancements, some pre-existing APIs have changed:

• RibbonPanel.AddButton() has been replaced with RibbonPanel.AddItem()
• RibbonPanel.AddStackedButtons() overloads have been replaced with RibbonPanel.AddStackedItems() overloads
• Property RibbonPanel.Items has been replaced with method RibbonPanel.GetItems()
• Property PulldownButton.Items has been replaced with method PulldownButton.GetItems()
• Methods RibbonPanel.AddPushButton() and RibbonPanel.AddPulldownButton() have been removed. Use RibbonPanel.AddItem() for this operation.
• RibbonPanel.AddToPulldown() has been removed. Use PulldownButton.AddItem() for this operation.
• PulldownButton.AddPushButton() has been removed. Use PulldownButton.AddItem() for this operation.

Some of the new functionality is demonstrated by the Ribbon SDK sample, but not all.

Here is a question on how to simulate a missing widget, a label to describe the use of a text box:

Question: How can I add a label to a ribbon text box like in these two examples from the Revit user interface?

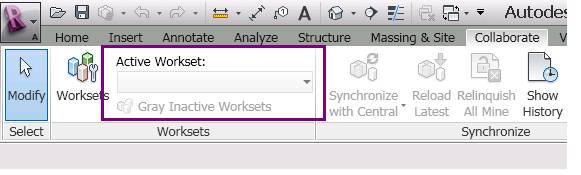

Here is a label for the active workset:

Here is a different label in the Autodesk Seek panel:

Could I possible use some stacked items to achieve this?

This is what my attempts so far end up looking like, displaying a textbox lacking a label:

The code I am using to produce it looks like this:

Sub AddTextBox(ByVal panel As RibbonPanel)

  ' fill the text gox information
  Dim txtBoxData As New TextBoxData("TextBox")

  txtBoxData.Image = New BitmapImage( _
    New Uri(m_imageFolder + "Basics.ico"))

  txtBoxData.Name = "Text Box"
  txtBoxData.ToolTip = "Enter text here"
  txtBoxData.LongDescription _
    = "<p>This is Revit UI Labs.</p><p>Ribbon Lab</p>"

  txtBoxData.ToolTipImage = New BitmapImage( _
    New Uri(m_imageFolder + "ImgHelloWorld.png"))

  ' create the text box item on the panel
  Dim txtBox As TextBox = panel.AddItem(txtBoxData)
  txtBox.PromptText = "Enter a comment"
  txtBox.ShowImageAsButton = True
  txtBox.Width = 180
  'txtBox.ItemText = "my text box"
  'txtBox.Name ' this is read only.

  ' p51. we'll talk about events in Lab4
  AddHandler txtBox.EnterPressed, New EventHandler( _
    Of TextBoxEnterPressedEventArgs)( _
    AddressOf txtBox_EnterPressed)

End Sub

' event hander for the text box above.
Sub txtBox_EnterPressed( _
  ByVal sender As Object, _
  ByVal e As TextBoxEnterPressedEventArgs)

  ' cast sender as TextBox to retrieve text value
  Dim txtBox As TextBox = sender

  TaskDialog.Show("TextBox Input", _
    "This is what you typed in: " _
    + txtBox.Value.ToString())

End Sub

Answer: The ribbon API does not contain a text label item, so the best alternative might be a disabled pushbutton stacked above the other control. Here is an example of what this might look like:

Here is the tweaked excerpt from the Ribbon SDK sample that produces this result:

  PushButtonData pushButtonData
    = new PushButtonData(
      "Active Workset",
      "Active Workset",
      AddInPath,
      className );

  ComboBoxData comboBoxDataLevel
    = new ComboBoxData( "LevelsSelector" );

  IList<RibbonItem> ribbonItemsStacked
    = ribbonSamplePanel.AddStackedItems(
      pushButtonData, comboBoxDataLevel );

  ( (PushButton) (ribbonItemsStacked[0]) ).Enabled
    = false;

Many thanks to Mikako Harada and Harry Mattison for this suggestion!
